In this article
Tiles include the button tile which navigates, markdown links URLs, text ensures consistency, image has File Library, value formatted with formatters.
To add a tile, follow these steps:
Navigate to the Tiles section within the widget
Click the + plus icon
Choose the desired type of tile.
Add the details as required.
Each tile has property fields specific to its type.
Button tile
Use the Button tile to navigate to any page in the report
The button tile
Image tile
Use the Image tile to add images to your report. Note that you first need to upload an image in the File Library by clicking the File library icon.

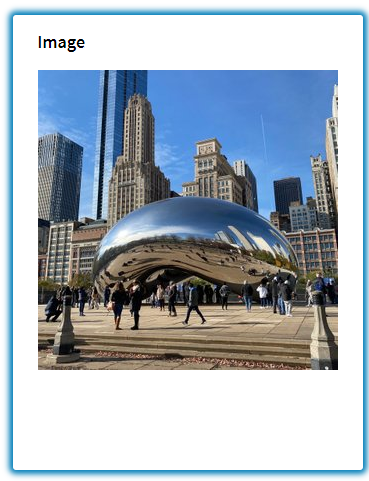

The image tile
Text tile
Use the Text tile to create consistent texts throughout your report (if you require more formatting options, use the Markdown tile).
The text tile
Value Tile
Use the Value tile to show the variable metric with period/hierarchy comparisons, response display, color/number formatting and options.
The value tile
To learn more about setting up the Value tile, visit: Value Tile
Markdown tile
Use the Markdown tile to create a link to a URL.
The markdown tile
Infographic Tile
Use the Infographic tile to visualize a value relative to a maximum value. You can choose between a value or icon display and apply color formatting.

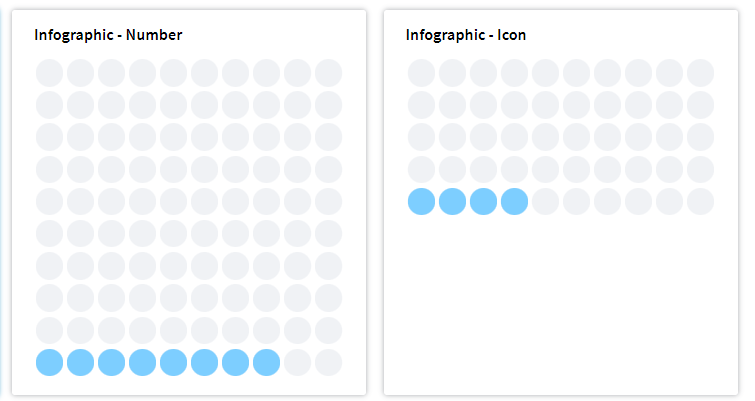

The infographic tile
To learn more about setting up the Infographic tile, visit: Infographic Tile
Chart Tile
Use the Chart tile to visualize your data. Customize it by using the Break By selector to specify a series. You can also access additional options through the wrench icon.

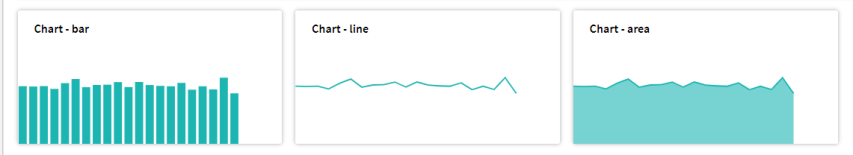

The chart tile
To learn more about setting up the Chart tile, visit: Chart Tile
Ranked List tile
Use the Ranked List tile to display categories, hierarchies, and groups of questions. Customize it by picking variables and the number of items.

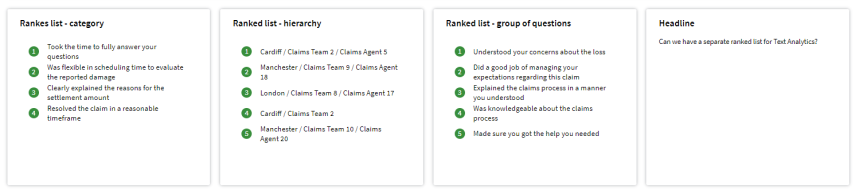

The ranked list tile
To learn more about setting up the Ranked List tile, visit: Ranked List Tile
Gauge Tile
Use the Gauge tiles to show differences between a variable and its set target. You can also customize its appearance, range, and target labels.

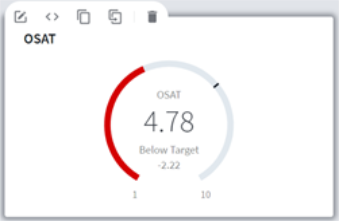

The gauge tile
To learn more about setting up the Gauge tile, visit: Gauge Til
