Create a chart tile, customize it, and use the Break By selector to specify a series. Access additional options through the wrench icon.
A widget can only contain one chart tile, which will always be positioned at the bottom of the widget. To track the desired statistical measurement, such as a frequency count of a question or an average satisfaction score, the series must be defined. Click on the expression editor within the series to specify the expression for each series.
Multiple examples of a chart tile
The Visualization drop-down controls how the series is displayed when divided into categories. Selecting "Standard" means no breakdown occurs. The other available options include:
Clustered: The breakdown categories are displayed side by side.
Stacked: The breakdown categories are stacked on top of each other.
Stacked 100%: The breakdown categories are stacked on top of each other in proportions that equal 100%.
To make a specific variable the breakdown variable for this series, use the Break By selector. With the selector, you have the ability to control the calculation of the percentage, define the number formatter, and pick the palette. In the category section, specify the time series you want to plot the value for.
Choose the periods you want to display on the category axis, such as month, day, or year.
Define the overall time period to display on the axis by selecting the start and end dates using the calendar
icons.
In the setup section, you can also:
Specify the chart type
Decide on a palette formatter
Decide to show or hide the legend, and its positioning
Choose to hide empty categories
Choose to hide empty series
Enable or disable Significance testing

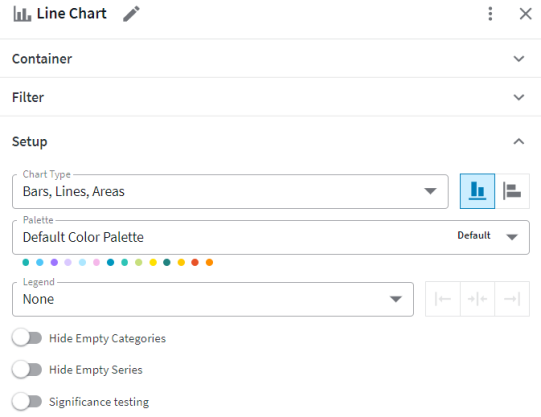

Setting up a chart widget
Additionally, you can display a base value for each category for added information on the category count. To accomplish this, click the plus + icon next to the Base Values section.
For details of the properties and settings, refer to widget headline in the CDL Reference Guide.
