Header Settings

Customize header with logo from File Library and theme elements like background, separator, and tab colors to match branding. CDL also available.

Within the Header section you can set the report logo and change the colors of various elements of the header bar to match your company branding. You can also add page breadcrumbs for easy navigation when subpages are added to your report.

The theme elements correspond to the following items within the header bar:

Element	Description	Values
Logo	The logo for your report, which appears above the Page Tabs Bar. Click the File library icon to access the File library and select an image.	User Defined Image
Background Color	The header area above the report tabs.	User Defined Color
Header Bottom Line Color	Separator line between the top header and the report tab area.	User Defined Color
Tabs Background Color	The background of the report tab area.	User Defined Color
Tabs Text Color	The text color of the report tabs.	User Defined Color
Active Tab Color	The color of the indicator line below the report page indicating that it is the active (in view) tab.	User Defined Color
Page breadcrumbs	Enabling page breadcrumbs in the report toolbar allows for easy navigation of reports when using subpages. See About Pages--Subpages to learn more.	Yes / No

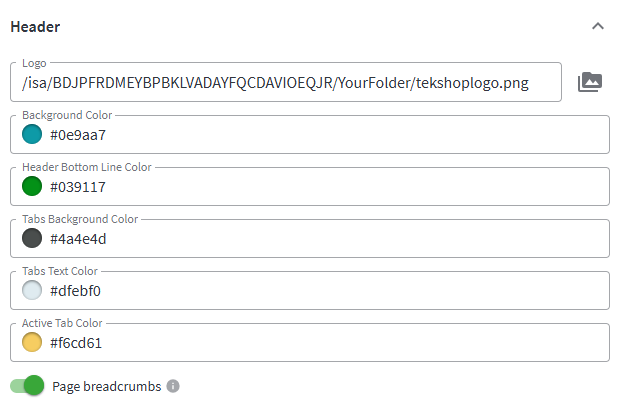

For example, the settings in the following image:

Example header settings

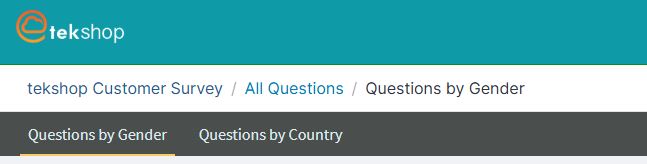

Would result in this header bar theme on a primary page:

Resulting header bar theme on a primary page with the above settings

And would result in this header bar theme on a subpage:

Resulting header bar theme on a subpage with the above settings

To learn how to setup the Header theme in CDL, see Customizing the Header Bar in CDL.
