External Breadcrumb Levels

You can now manually add additional levels to page breadcrumbs, enabling navigation to reports, systems, or pages outside of Studio. These “external levels” are added to the start of the breadcrumb in the order defined in CDL.

Improved truncation handling

Previously, long breadcrumbs could truncate levels in a way that made them inaccessible. This has been improved:

• Truncation now starts at 7+ levels by default

• The threshold is configurable via the UI

• Hovering over the ellipsis now reveals hidden levels in a navigable dropdown

Sticky breadcrumb bar (enabled by default)

The breadcrumb bar now remains visible as users scroll, helping them maintain context within reports. This can be disabled via the UI if needed.

Improved behaviour on the first page of a report

To reduce confusion:

• The current page is no longer shown in the breadcrumb on the first page

• The current report is no longer clickable

This avoids “no action” clicks and improves clarity, especially for single-page reports.

This behaviour can be reverted via CDL if required.

PDF export updates

Page breadcrumbs are now hidden by default in PDF exports, as they add limited value in this format. This can be re-enabled via the UI if needed.

Localised report titles in breadcrumbs

The breadcrumb now uses the report Title instead of the report Name.

• Supports language localisation

• Better aligns with customer needs for multilingual reporting

• Configured via CDL (using a valueSet approach rather than standard resource texts)

Key Benefits

• External levels support cross-system navigation (particularly valuable in healthcare scenarios)

• Improved truncation ensures all breadcrumb levels remain accessible

• Updated first-page behaviour reduces confusion and improves usability

• Cleaner PDF exports enhance presentation quality

• Localised titles strengthen multilingual support in Studio

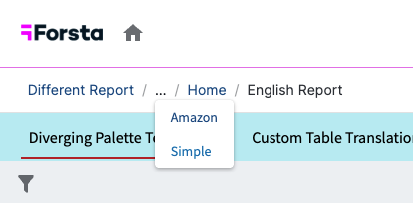

External levels added to breadcrumb

Improved truncation handling

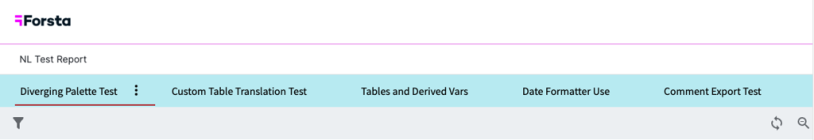

First-page behaviour (non-clickable report, page hidden)

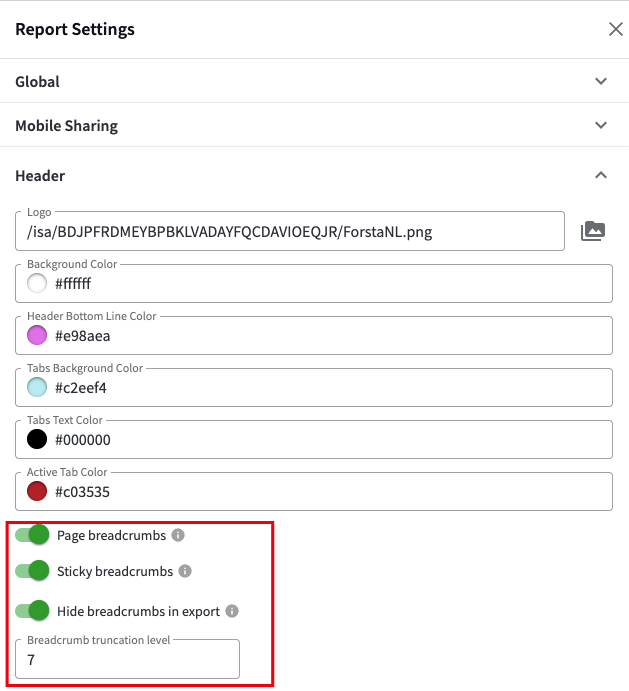

New report settings controlling these features

CDL Examples

Adding additional levels

config navigation #navigation1 {
//A page in another reportexternalLevel #otherReport1 {
label: "Different Report"
navigateTo: link document {
documentId: 104312
page: "page_42"
navigateOptions: "new_tab"
}
}
//External web page
externalLevel #externalUrlNewTab {
label: "Amazon"
navigateTo: link url {
page: "Amazon.com. Spend less. Smile more. "
}
navigateOptions: same_tab
}
//Internal page
externalLevel #internalPage {
label: "Simple"
navigateTo: "simpleSection"
//    navigateOptions: new_tab
}
}

New CDL properties that can be used to revert new default behaviour

//stickyBreadcrumbBar: false
//pageBreadcrumbFirstPage: true
//hideInExport: false

Example of translating report title

Report title does not directly support resource texts, so a slight workaround is available to add language localisation here using valueSet, which itself refers to resources e.g.

//Report Title
title @title.head.value
//Resource Texts Example
resources {
resource texts #en { // English translations
title: "English Report"
}
resource texts #fr { // French translations
title: "Français Report"
}
}
//valueSet example
valueSet #title {
item #head {
label: "header"
value: __getText(title)
}
}
