BreakdownBy Code Block

BreakdownBy code block segments stacked bar chart data. Use cut, cutByMulti, date, or overlappingdate to configure chart segmentation.

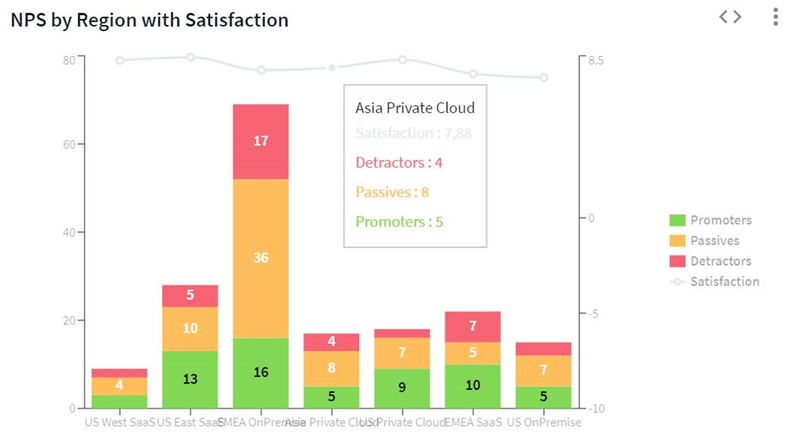

The BreakdownBy code block segments the data in a stacked bar chart into its respective groups. In the figure below, the chart is divided into NPS segments.

Example of a stacked bar chart broken down by NPS segments

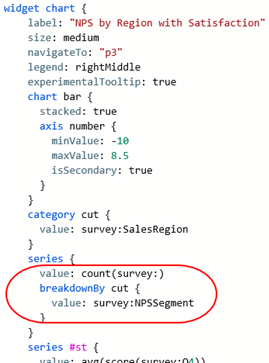

The code used to create the chart is presented below:

The code used to create the above chart

Examples of code to configure how the chart is segmented are presented below:

breakdownBy cut {
    value,
    label,
    format,
}
breakdownBy cutByMulti {
    value,
    label,
    format,
}
breakdownBy date {
    value,
    label,
    format,
    breakdownBy,
    start,
    end
}
breakdownBy overlappingdate {
    value,
    label,
    format,
    breakdownBy,
    start,
    end,
    startShift,
    endShift
}

For details of the properties and settings, refer to widget chart in the CDL Reference Guide.
