Selectors can be used to set values for various properties in widgets, such as colours and text values, except for the formatter value.

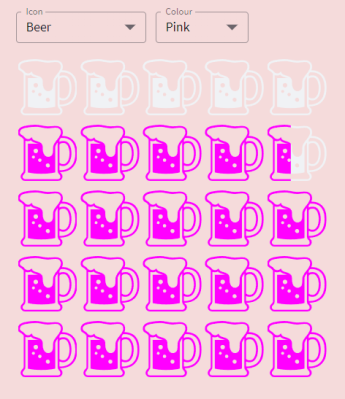

Example of setting values with selectors in a headline widget View CDL widget headline #headlineWidget { label: "Setting values with Selectors" select #headlineIcon { label: "Icon" options: item { label: 'Beer' value: iconL18 }, item { label: 'Toaster' value: iconD69}, item { label: 'Jazz Musician' value: iconF81 } } select #headlineColour { label: "Colour" options: item { label: 'Pink' value: "#f5dbdb" }, item { label: 'Blue' value: #b0f1f2 } } tile infographic #infographicTile { value: 19.4 view: "iconView_infographicTile" colorFormatter: copy_of_dropOffDefaultFormatter } view icon #iconView_infographicTile { columns: 5 rows: 5 fillDirection: "horizontal" max: 25 precision: "exact" icon: @headlineIcon.selected } view numeric #numericView_infographicTile { max: 100 } size: small cardBackground: @headlineColour.selected } | Property ValuesThe majority of properties, not just data values, can be set with a selector such as colours, any text value, etc. one notable exception right now is the formatter value which does not accept references. View CDL select #headlineColour { label: ʺColourʺ options: item { label: 'Pink' value: "#f5dbdb" }, item { label: 'Blue' value: #b0f1f2 } } |
