Setting up a Drop Off Widget

The Drop Off widget analyzes survey data, displaying the top n questions with percentage values. It has color and number format control settings.

The properties of the Drop Off widget are as follows:

Drop off widget properties

• Source - The survey for the drop off analysis, with the default survey dataset being used by default.

• Color Format -Controls the color of the bars.

• Number Format - Controls the number format of the displayed percentage values.

• Number of Questions - Determines the top n questions to be displayed as part of the drop off, with the default being three.

Example Setup of a Drop Off Widget

Example setup of a drop off widget

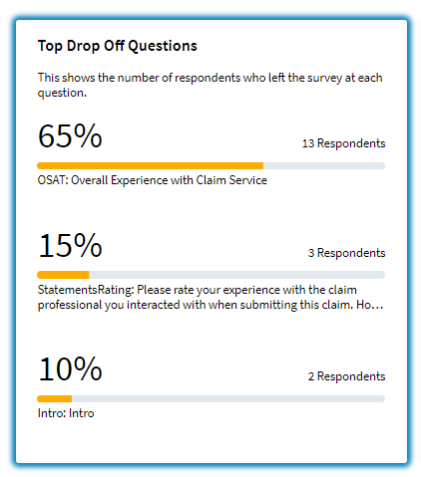

Resulting drop off widget with the above setup

For further details of the properties and settings, refer to widget dropOff in the CDL Reference Guide
